50t slag pot carrier on rail for steel mill production line transformer car
Introduction of slag pot carrier on rails
KPX series slag pot carrier on rails for molten steel handlingpowered by the storage battery. It can run on straight rails or curved rails according to user actual use demand.
Compare wtih KPJ, KPD series ,it is of the greater flexibility in security and mobility. The running distance is not limited and without demand of rail insulation,so the construction is convenient and the cost is low
Working principle of slag pot carrier on rails
KPX series' transformer car is battery powered. The battery is installed in the carts. The batteries supplied the electricity to the DC motor through the electrical control system. By this way, we can make the flat cart to start, stop, go forward, back ward, adjust the speed and so on.
.
Slag pot carrier on rails details
Parameter of slag pot carrier on rails
| Model | KPX-50T |
| Rated Load(t) | 50T |
| Table Size(mm) | 5500*2500*650 |
| Wheel Base(mm) | 4200 |
| Rail Gauge(mm) | 1435 |
| Wheel Diameter(mm) | Ф500 |
| Wheel Quantity | 4 |
| Ground Clearance(mm) | 50 |
| Running Speed(m/min) | 0-20 |
| Motor Power | 5 |
| Battery Capacity(Ah) | 330 |
| Battery Voltage(V) | 48 |
| Running Time When Full Load | 3.3 |
| Running Distance for One Charge(Km) | 4 |
| Max Wheel Load(KN) | 174 |
| Reference Weight(t) | 8 |
| Recommended Rail Model | P43 |
Slag pot carrier on rails application
The slag pot carrier on rails are mainly applied in metallurgy industry (steel ladle), warehouse transport, workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure)
Advantage of slag pot carrier on rails
Due to advantage of without cable, it is mainly applied on the railways, can realize the straight rail, S shape rail, U shape rail, C shape rail, arc-shaped rail, 90 degree turn rail, crossing rail etc.

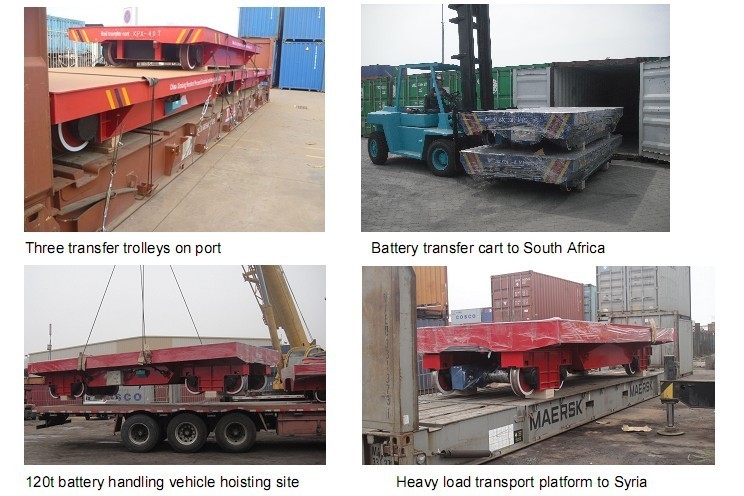

Our Packaging of slag pot carrier on rails
Customer visit of slag pot carrier on rails
Processing of slag pot carrier on rails
Our after-sale service
-
Our commitment: The load bearing safety factor of the trolley is no less than 120%.
-
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
-
16 hours engineering service and 24 hours internet service for our customers.
-
During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
-
Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
Our client feedback
