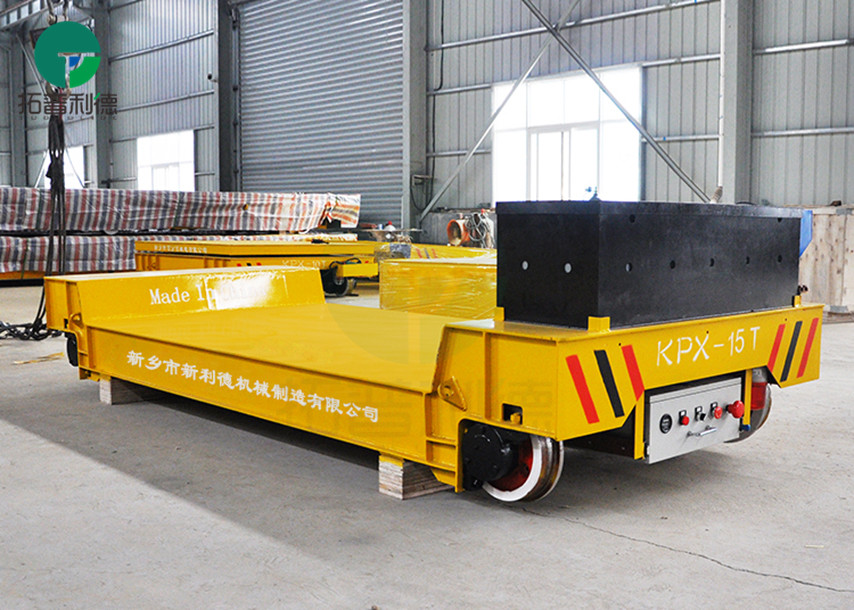

Motorized Steerable 15 ton Dies Rail Transfer Cart Electric Mold Transfer Platform
Product Description for Dies Rail Transfer Cart
The Motorized Steerable 15 ton Dies Rail Transfer Cart Electric Mold Transfer Platform that is powered by a battery and driven by a motor. The electric power is an important energy source that is environmentally friendly, clean, and has a high conversion rate. The electric power is used to drive the vehicle. Renewal, promote low-carbon development of the transportation industry, reduce transportation costs, save energy, and protect the environment.
Working Principle of Dies Rail Transfer Cart
The dies rail transfer cart is powered by storage battery. The battery is installed in the transfer cart and we also equip intelligent charger for it. The transfer cart is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller.
Advantages of Dies Rail Transfer Cart
The kind of dies rail transfer cart electric mold transport platform is with high level automation
Excellent gear reducer and motor with high quality, assemblied together perfectly
Safe devices are installed in the electric mold transport platform
Remote control can be equipped together to operate the dies rail transfer cart well
Customization can be supported for the electric mold transport platform
The rail transfer cart is equipped with collision safety protection device and sound and light alarm system, fast response, and short braking distance with an electromagnetic brake. Tubeless polyurethane or rubber wheel can be choosed according to the bearing tonnage, no damage to floor coating.
Customized Option of Dies Rail Transfer Cart
Flat decks or fixtures customized for specific loads.
Custom deck configurations including built-in scales and lift/tilt/rotate capabilities.
Track or trackless, non-guided steering. Alternative drive and steering systems including gear reducer axle drives and individually-controlled drive wheels.
Fixed or variable speeds with forward/reverse function.
Drives with acceleration/deceleration capabilities.
Variety of operator control systems including fixed user interface, pendant control on coil cord, and radio-controlled remote operation.
Safety features including horns, flashing lights, e-stops, bumpers and collision avoidance systems.
Technical Parameter of Dies Rail Transfer Cart
| Model | KPX-2T | KPX-5T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-100T | KPX-150T |
| Rated load (T) | 2 | 5 | 10 | 20 | 30 | 50 | 100 | 150 |
| Table size(mm) | length | 2000 | 3500 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 |
| Height | 450 | 500 | 500 | 550 | 600 | 650 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 4200 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | Φ280 | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 |
| Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3.5 | 5 | 10 | 15 |
| Battery Capacity (Ah) | 180 | 180 | 160 | 180 | 250 | 330 | 440 | 600 |
| Battery Voltage (V) | 24 | 36 | 48 | 48 | 48 | 48 | 72 | 72 |
| Running speed (m/min) | 0-30 | 0-30 | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-18 |
| Running Time When Full Load(Hours) | 4.32 | 5.4 | 4.8 | 4 | 3.5 | 3.3 | 3.2 | 3.2 |
| Running Distance for One Charge(Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.2 | 4 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 174 | 343.8 | 265.2 |
| Reference Weight (t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.8 | 8 | 14.5 | 26.8 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | QU100 | QU100 |
Manufacturing of Dies Rail Transfer Cart
Delivery of Dies Rail Transfer Cart
tags:material handling vehicle for dies,on rail vehicle for dies
|
|
Motorized Steerable 15 ton Dies Rail Transfer Cart Electric Mold Transfer Platform Images
|
